Enamelled Wires Introduction
PEWC have produced enamelled wire since 1955, and technologically cooperated with well-known international company like Sumitomo (Japan) and Phelps Dodge (USA). PEWC upgrade the technological level and products quality by accumulating long-termed producing and design experience. The quality of kinds of enamelled wire is always stable with nice honor and get many quality certification.
The enamelled wire PEWC produced can meet different application demands of the market. As the electrical products become small-exquisite, high-effective, high-trusted and special demands, PEWC developed new products. PEWC also develop kinds of enamelled wire to meet the market demands and customers trust PEWC deeply.
Enamelled wire products are roughly divided into the following five categories：
Enamelled wire products are roughly divided into the following five categories：
• Enamelled wire for Electronic component (MW 28-C、MW 75-C、MW 79-C、MW 80-C、IEC 60317-19、IEC 60317-4、IEC 60317-20、IEC 60317-21…)
• Enamelled wire for motor (MW 5-C、MW 24-C、MW 76-C、MW 30-C、MW 35-C、MW 81-C、IEC 60317-3、IEC 60317-22、IEC 60317-8、IEC 60317-13、IEC 60317-26…)
• Enamelled wire for transformer (MW 15-C、MW 5-C、MW 30-C、MW 35-C、IEC 60317-1、IEC 60317-3、IEC 60317-8、IEC 60317-13…)
• Enamelled wire for compressor (MW 73-C、MW 81-C、IEC 60317-13、IEC 60317-26…)
• Enamelled wire for car (MW 30-C、MW 35-C、MW 81-C、MW 16-C、MW 84-C、MW 20-C、IEC 60317-8、IEC 60317-13、IEC 60317-26、IEC 60317-7、IEC 60317-58、IEC 60317-47…)
• Enamelled wire for motor (MW 5-C、MW 24-C、MW 76-C、MW 30-C、MW 35-C、MW 81-C、IEC 60317-3、IEC 60317-22、IEC 60317-8、IEC 60317-13、IEC 60317-26…)
• Enamelled wire for transformer (MW 15-C、MW 5-C、MW 30-C、MW 35-C、IEC 60317-1、IEC 60317-3、IEC 60317-8、IEC 60317-13…)
• Enamelled wire for compressor (MW 73-C、MW 81-C、IEC 60317-13、IEC 60317-26…)
• Enamelled wire for car (MW 30-C、MW 35-C、MW 81-C、MW 16-C、MW 84-C、MW 20-C、IEC 60317-8、IEC 60317-13、IEC 60317-26、IEC 60317-7、IEC 60317-58、IEC 60317-47…)
Main products：

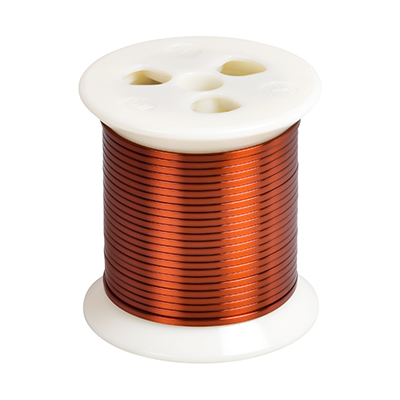

• Electric vehicle(HEV、NEV、EV) enamelled rectangular copper wire: Main characteristics are Corona Resistance, high Partial Discharge Inception Voltage (PDIV) and ATF oil resistance drive motors.

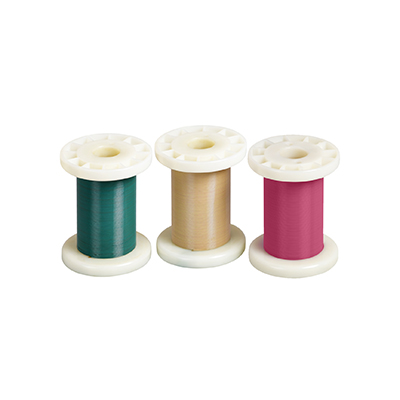

• High thermal colorable enamelled wire: Main characteristics are High-thermal and Colorable.
• High Frequency corona Resistance enamelled wire: Main characteristics are Corona Resistance Inverter Motor.
• Refrigerant Resistance enamelled wire: Can meet the demands of the kinds of Refrigerant compressor motors.
• High thermal colorable enamelled wire: Main characteristics are High-thermal and Colorable.
• High Frequency corona Resistance enamelled wire: Main characteristics are Corona Resistance Inverter Motor.
• Refrigerant Resistance enamelled wire: Can meet the demands of the kinds of Refrigerant compressor motors.
Enamelled Wires Type
Enamelled Wires Description

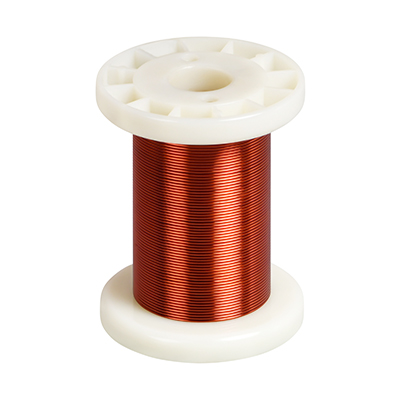

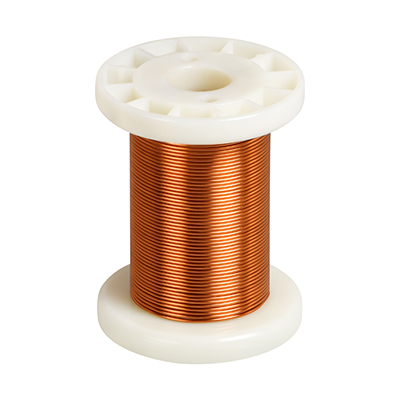

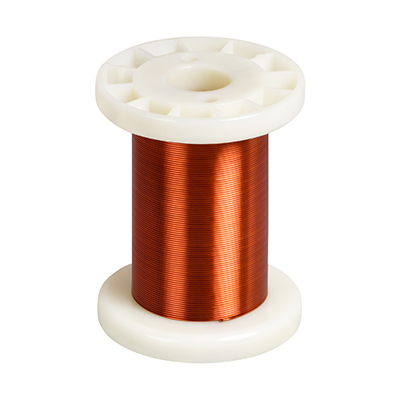

• Magnet Wire (Winding Wire)\ Enamelled Wire is for electrical products wire which was coated one or more layers of insulation material on the high purity and high conductivity metal (copper, aluminum or alloy) then heated to form.
• The main application is to manufacture the kinds of coils in electronic components(Passive components), motors, heavy electric system(transformer and generator), home appliances(air conditioner and refrigerator), automobile and scooter, and 3C products(computer and cell phone).
• The quality is the most important thing in enamelled wire producing, PEWC use the newest high speed in-line enamelled wire manufacturing device from Europe to ensure the stability of products.
• For green-product, environmental regulations and the customer requirements, PEWC is also committed to pollution prevention to reduce the shock to the environment. All the related enamelled wire products can completely meet the control requirements of RoHS and REACH.
.jpg)
Enamelled Wires Product Instructions
Characteristics Comparative Table of products
PDF Download
JIS-0、1 Specification
PDF Download
JIS-2、3 Specification
PDF Download
NEMA Specification
PDF Download
Table of winding tension
PDF Download
Types of Bobbins
PDF Download
enamelled wire certification file 1.UL
PDF Download
enamelled wire certification file 2.IATF 16949
PDF Download
enamelled wire certification file 3.SONY GreenPartner
PDF Download
