SCR Continuous Copper Rod

SCR Continuous Copper Rod

• High grade raw material:Use high grade copper cathodes as raw material to decrease the content of impurity.
• Uniform quality:Adopt automatic computer control system to help operator make the O2 content & crystal structure uniform in rod.

• Lower wear of wire drawing die:The smooth surface of copper rod which is cleaned by IPA and coated by wax effectively reduce wear of wire drawing die.
• Save the power of wire drawing:The softness of copper rod save the power of wire drawing.

• Increase production rate:No conjunction and lower wire breakage increase production rate.

Add Inquiry

SCR Continuous Copper Rod

Product Description

SCR Continuous Copper Rod


Item Spec. According to
Dia. 8.0 ± 0.38 ㎜
7.94 ± 0.38 ㎜
CNS 4745
ASTM B-49
Conductivity
(IACS,200C)
≧ 100% CNS 4745
ASTM B-49
Elongation ≧ 30% CNS 4745
ASTM B-49
Density 8.89 g/cm3 ASTM B-49

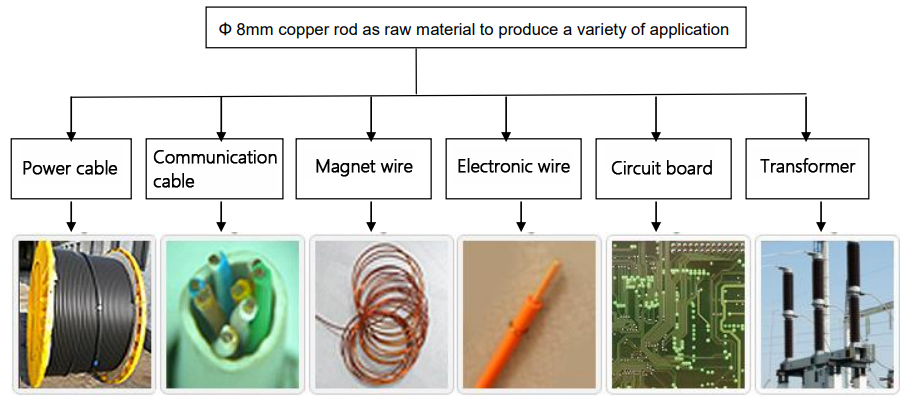

Application of SCR Continuous Copper Rod




SCR Continuous Copper Rod

Product Documentation

Continuous Copper Rod PDF Download
